submersible probes | level probes

BD|SENSORS offers a wide range of submersible probes designed for the measurement of fill levels of fluid or paste-like media or for levels of water and waste-water. The sensors are based on hydrostatic pressure, i.e. the fill level is found by measuring pressure.

Die Tauchsonden sind in zahlreichen Gehäusematerialien, Drucksensor- und Durchmesser-Varianten verfügbar und bieten somit schon in der Standardausführung eine perfekt passende Lösung für vorherrschende Einbausituationen.

Eine Besonderheit stellen die trennbaren Tauchsonden dar. Bei diesen Ausführungen kann der Sondenteil mühelos ohne Werkzeug vom Kabel getrennt werden – ein entscheidender Vorteil im Service- oder Wartungsfall, da hier lediglich ein Teil der Tauchsonde und nicht die gesamte Installation betroffen ist.

mit Edelstahl-Sensor LMP 308 | LMP 808
mit Keramik-Sensor LMK 358 | LMK 808 | LMK 858

Weitere Ausführungen, wie z.B. Tauchsonden mit integriertem Überspannungsschutz, Temperatursensor oder Datenlogger gehören ebenso zum Programm, wie kommunikationsfähige Varianten mit RS-485-Schnittstelle oder HART®-Protokoll.

MATRIX FÜLLSTANDSSONDEN

Limiting the range of products - finding the suitable product quickly and easily!

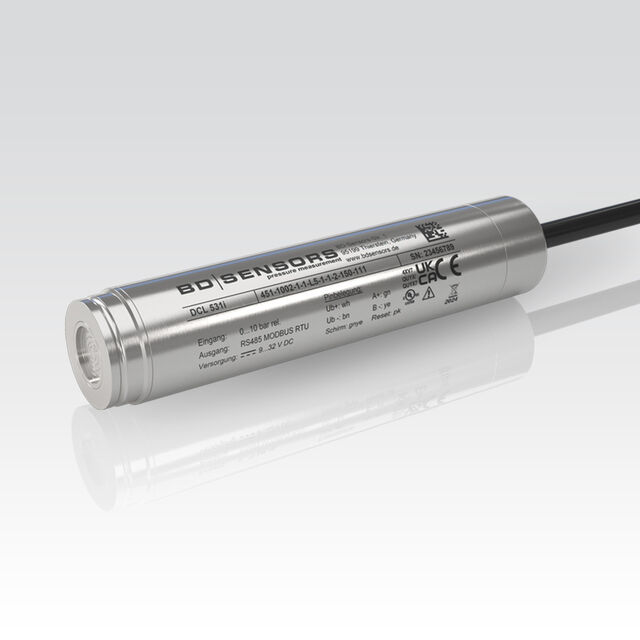

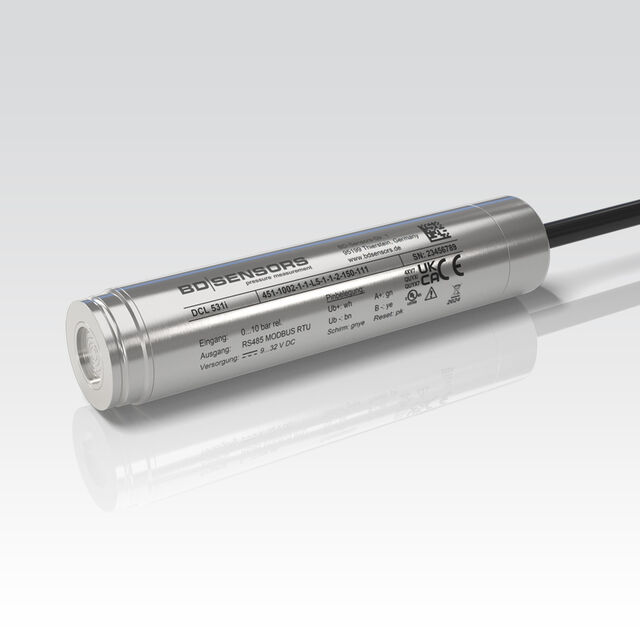

DCL 531i

stainless steel sensor
with RS485 Modbus RTU Ø 26.5

nominal pressure:0 ... 1 mH2O up to 0 ... 250 mH2O
accuracy:0.1 % FSO

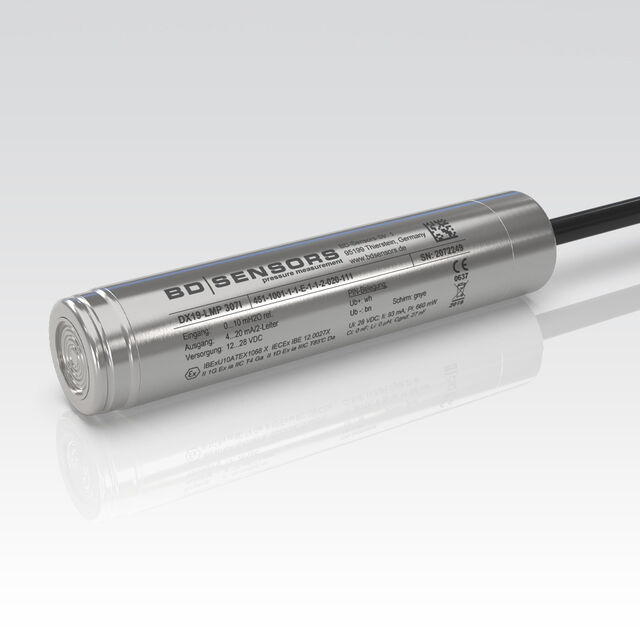

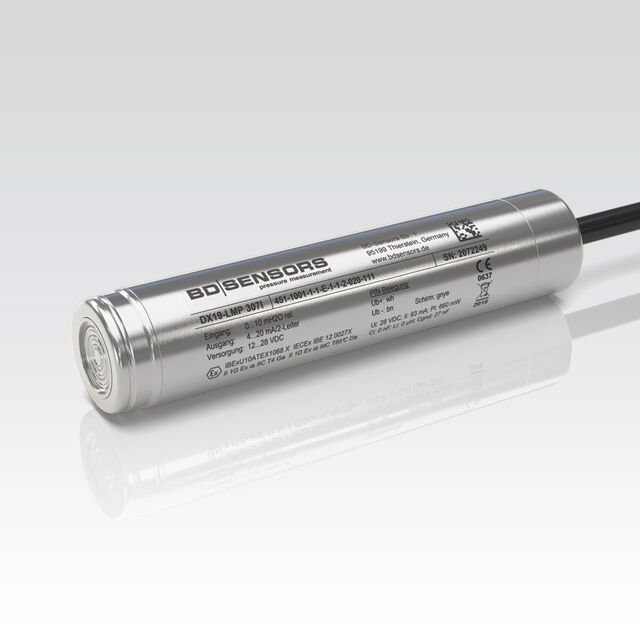

LMP 307i

stainless steel sensor
stainless-steel probe Ø 26.5

nominal pressure:0 ... 4 mH2O up to 0 ... 200 mH2O
accuracy:0.1 % FSO

LMP 308i

stainless steel sensor
detachable stainless steel probe Ø 35

nominal pressure:0 ...4 mH2O up to 0 ... 200 mH2O
accuracy:0.1 % FSO

LMK 358 H

ceramic sensor
detachable stainless steel probe Ø 39.5

nominal pressure:0 ... 60 cmH2O up to 0 ... 100 mH2O
accuracy:0.1 % FSO

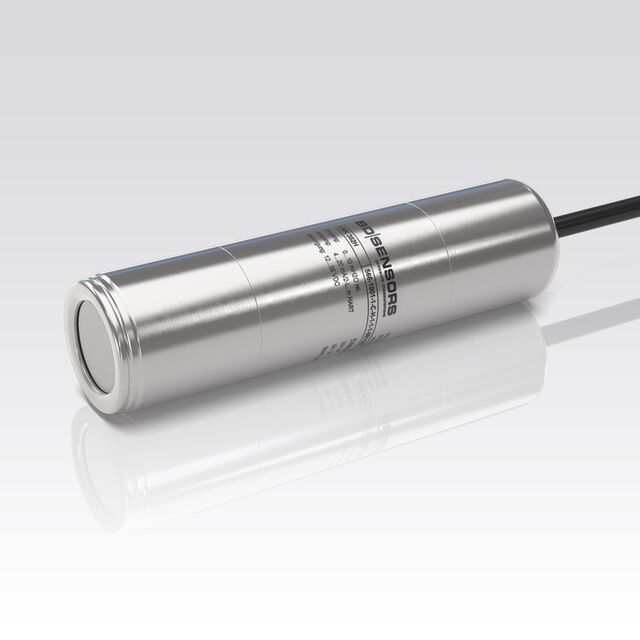

LMK 382 H

ceramic sensor
steel probe Ø 39.5

nominal pressure:0 ... 60 cmH2O up to 0 ... 200 mH2O
accuracy:0.1 % FSO

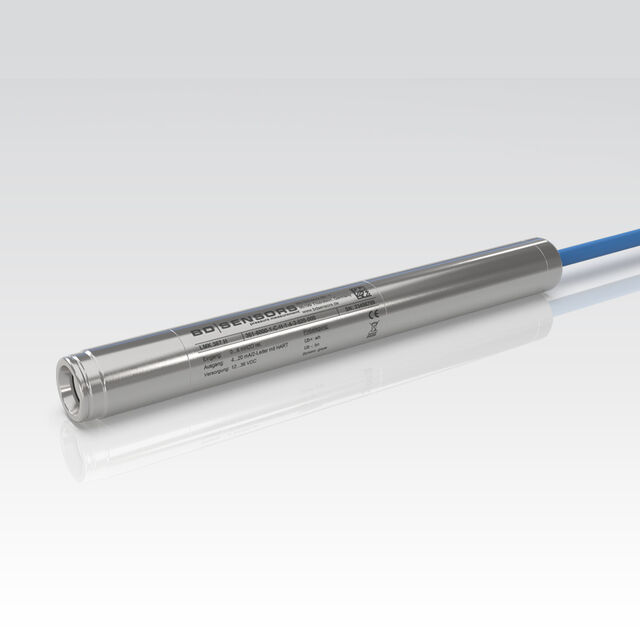

LMK 387 H

ceramic sensor
with HART®-communication

nominal pressure:0 ... 1 mH2O up to 0 ... 100 mH2O
accuracy:0.35 % (Opt. 0.25 %) FSO

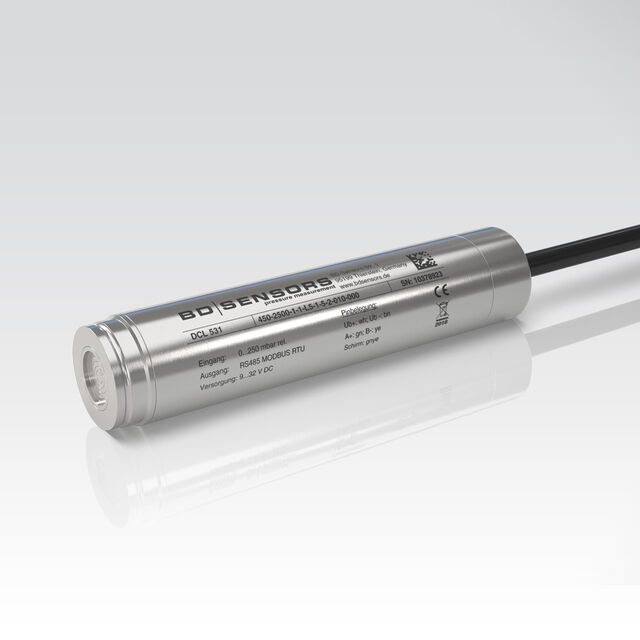

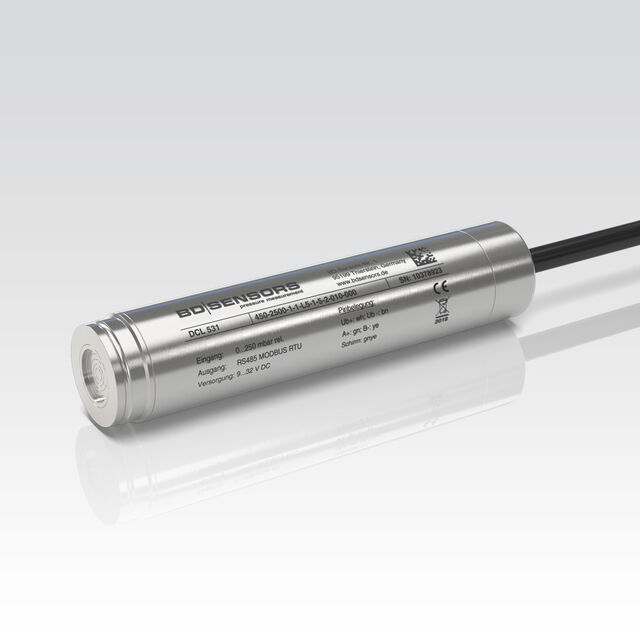

DCL 531

stainless steel sensor
with RS485 Modbus RTU

nominal pressure:0 ... 1 mH2O up to 0 ... 250 mH2O
accuracy:0.25 % FSO

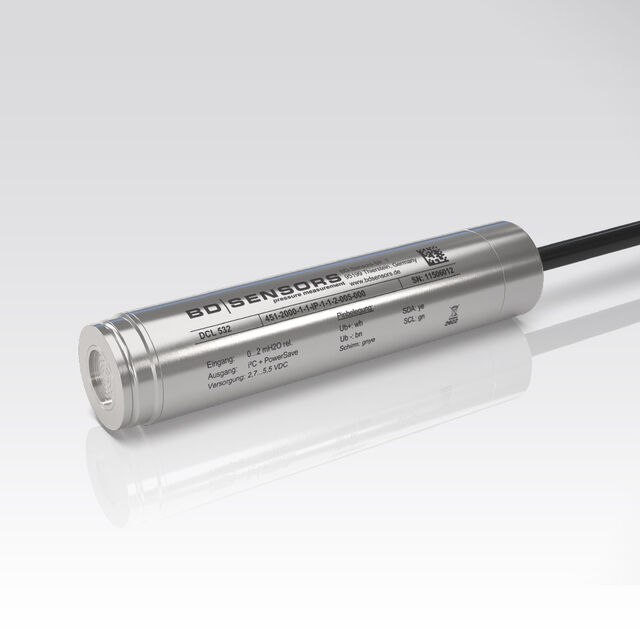

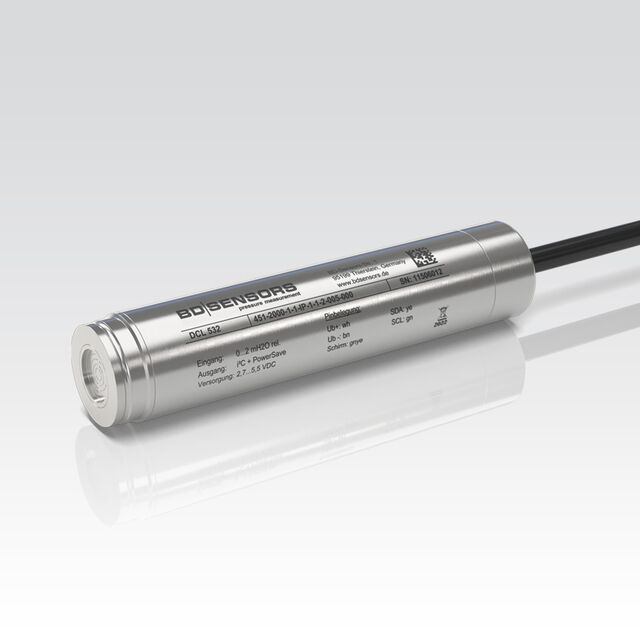

DCL 532

stainless steel sensor
with I2C

nominal pressure:0 ... 1 mH2O up to 0 ... 40 mH2O
accuracy:0.25 % (Opt. 0.1 %) FSO

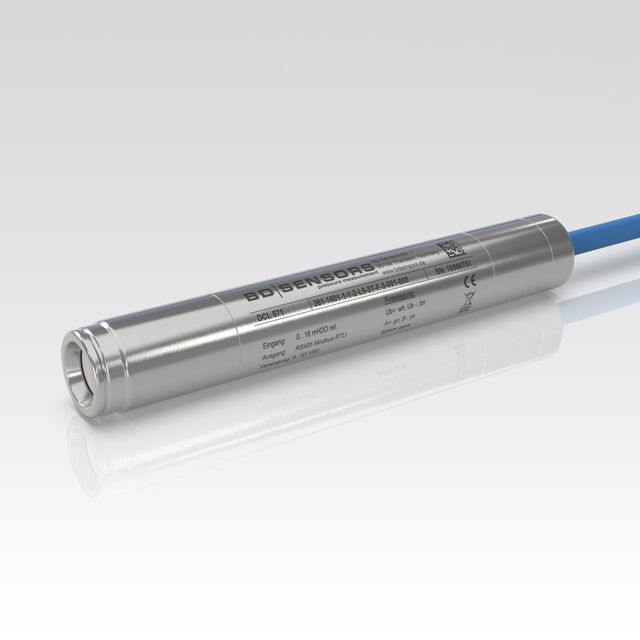

DCL 571

ceramic sensor
with RS485 Modbus RTU

nominal pressure:0 ... 1 mH2O up to 0 ... 100 mH2O
accuracy:0.35% (Opt. 0.25 %) FSO

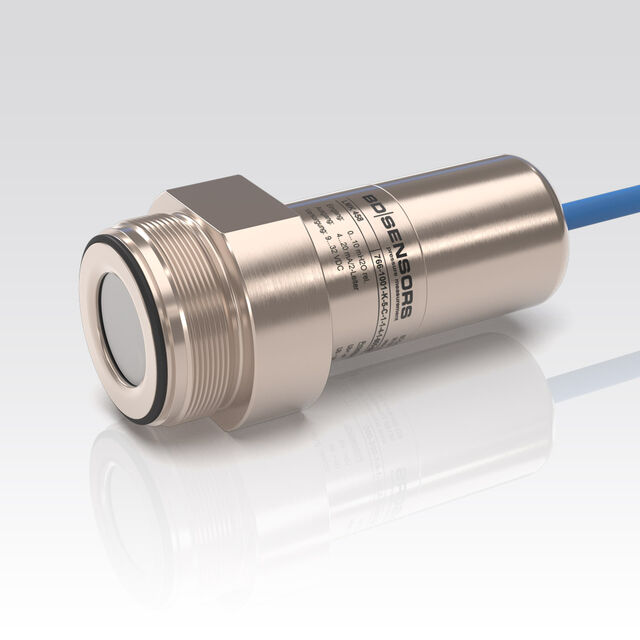

LMK 458

ceramic sensor
stainless steel probe Ø 39,5

nominal pressure:0 ... 40 cmH2O up to 0 ... 200 mH2O
accuracy:0.35 % (Opt. 0.1 %) FSO

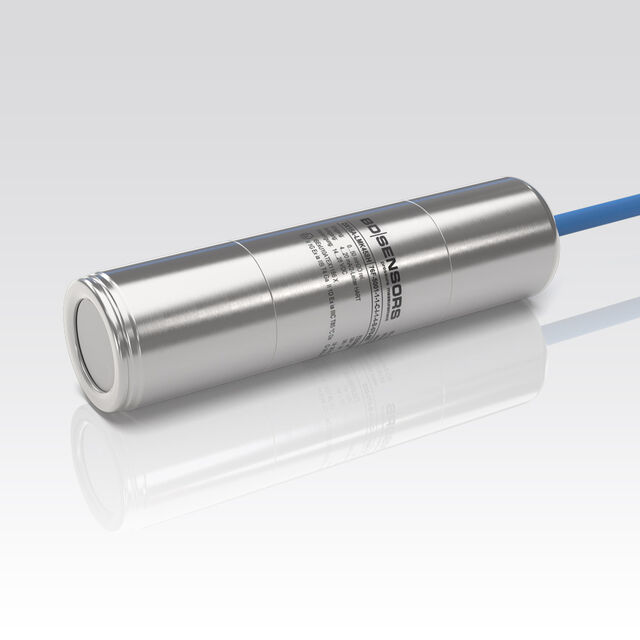

LMK 458 H

ceramic sensor
hydrostatic HART-probe Ø 39,5

nominal pressure:0 ... 60 cmH2O up to 0 ... 200 mH2O
accuracy:0.1 % FSO

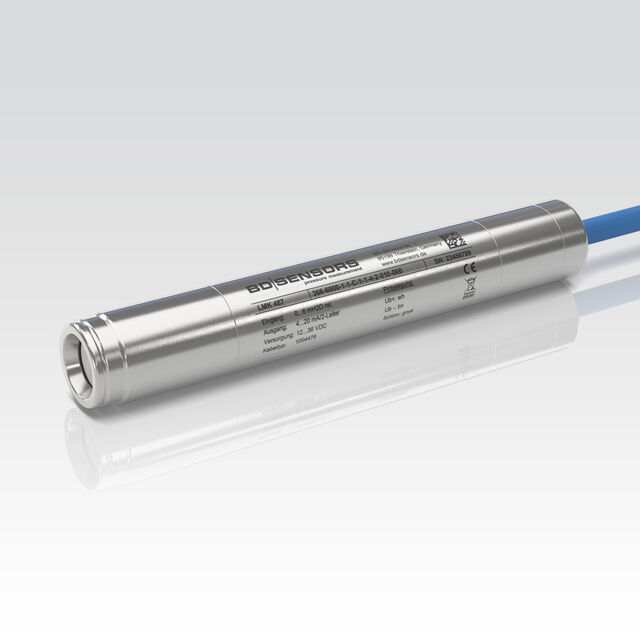

LMK 487

ceramic sensor
probe Ø 22mm

nominal pressure:0 ... 1 mH2O up to 0 ... 100 mH2O
accuracy:0.25 % FSO

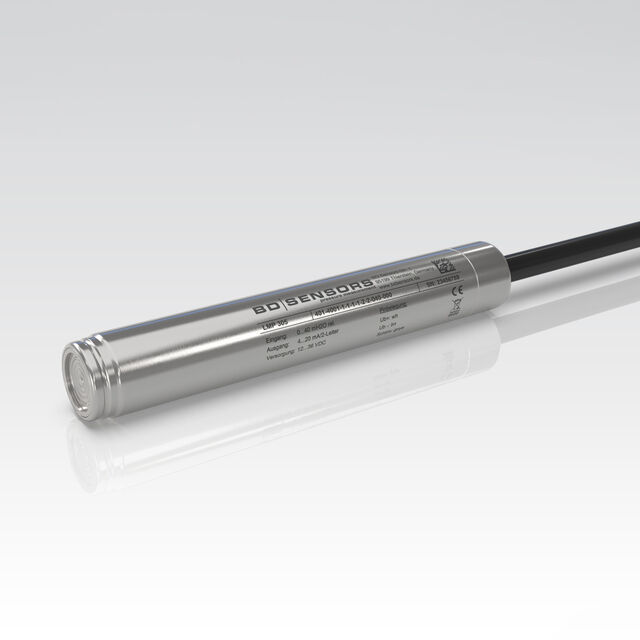

LMP 305

stainless steel sensor
slimline-probe Ø 19

nominal pressure:0 ... 1 mH2O up to 0 ... 250 mH2O
accuracy:0.35 % (Opt. 0.25 %) FSO

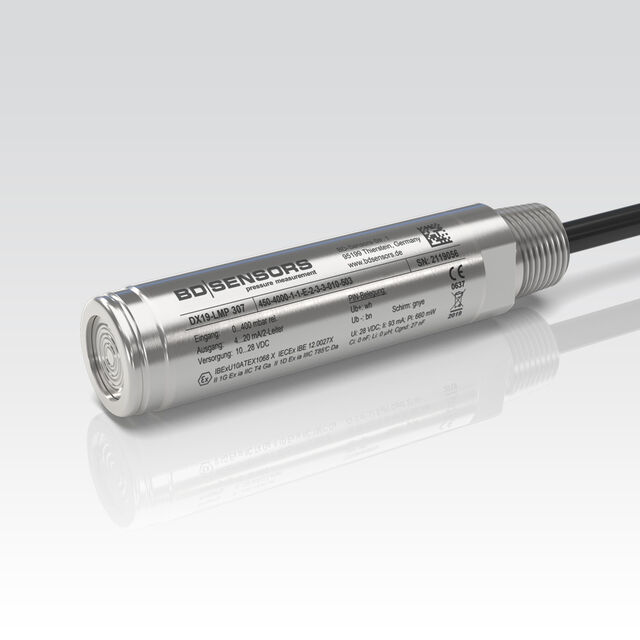

LMP 307

stainless steel sensor
stainless steel probe Ø 27

nominal pressure:0 ... 1 mH2O up to 0 ... 250 mH2O
accuracy:0.35 % (Opt. 0.25% / 0.1 %) FSO

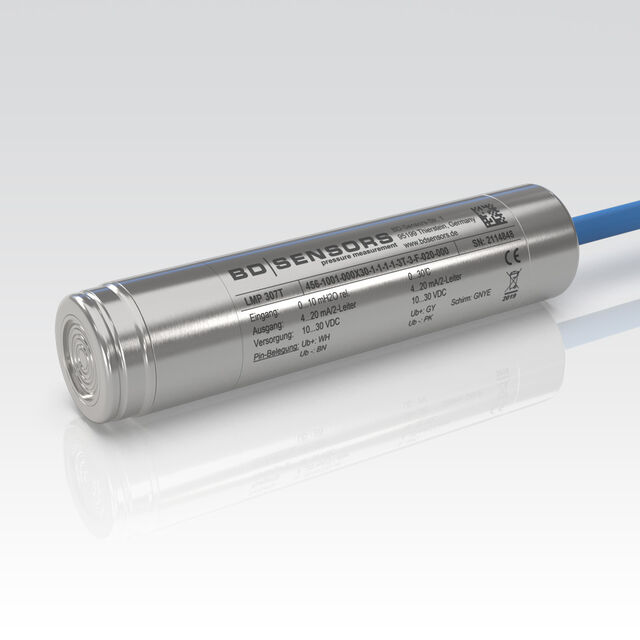

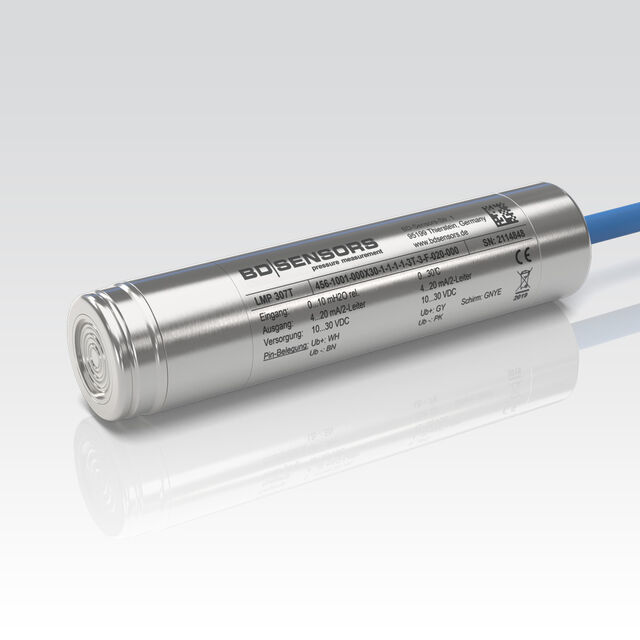

LMP 307T

stainless steel sensor
stainless steel probe Ø 27

nominal pressure:0 ... 1 mH2O up to 0 ... 250 mH2O
accuracy:0.35 % (Opt. 0.25 %) FSO

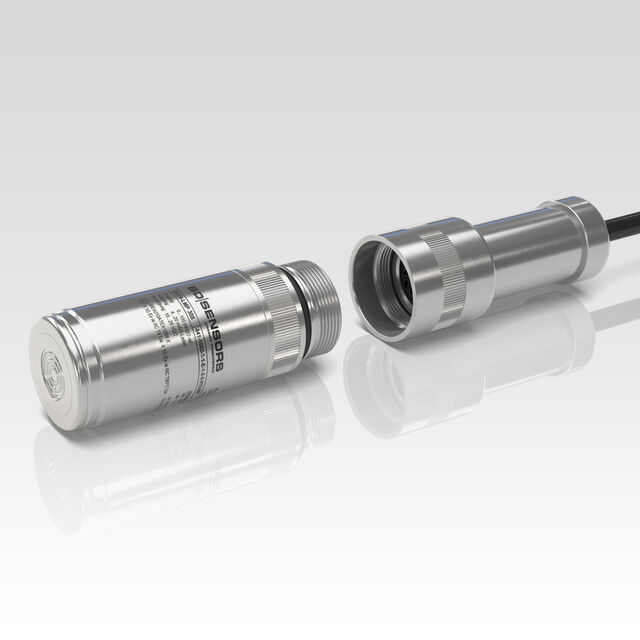

LMP 308

stainless steel sensor
detachable stainless steel probe Ø 35

nominal pressure:0 ... 1 mH2O up to 0 ... 250 mH2O
accuracy:0.35 % (Opt. 0.25% / 0.1 %) FSO

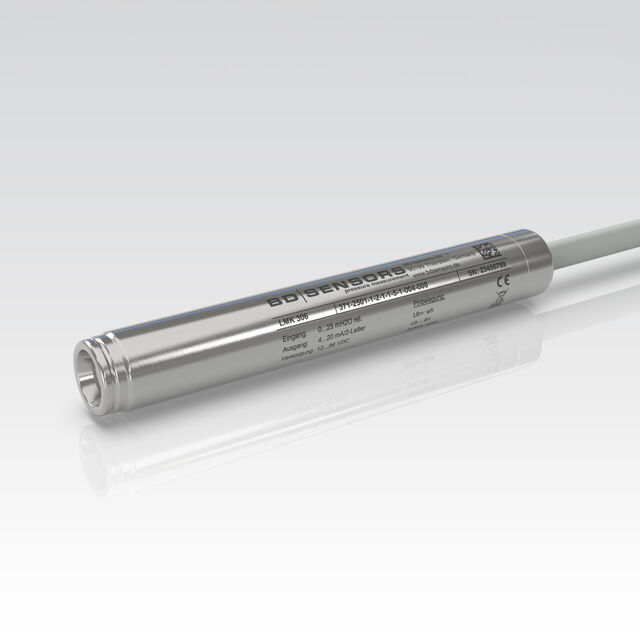

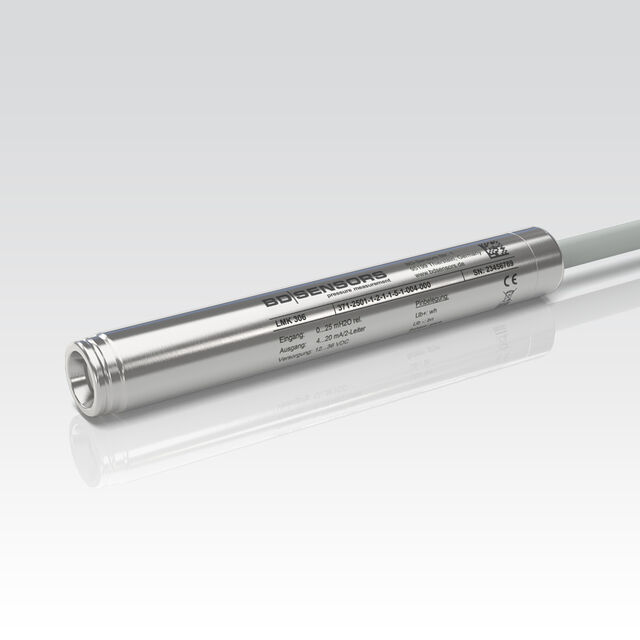

LMK 306

ceramic sensor
stainless steel probe Ø 17

nominal pressure:0 ... 6 mH2O up to 0 ... 200 mH2O
accuracy:0.5 % FSO

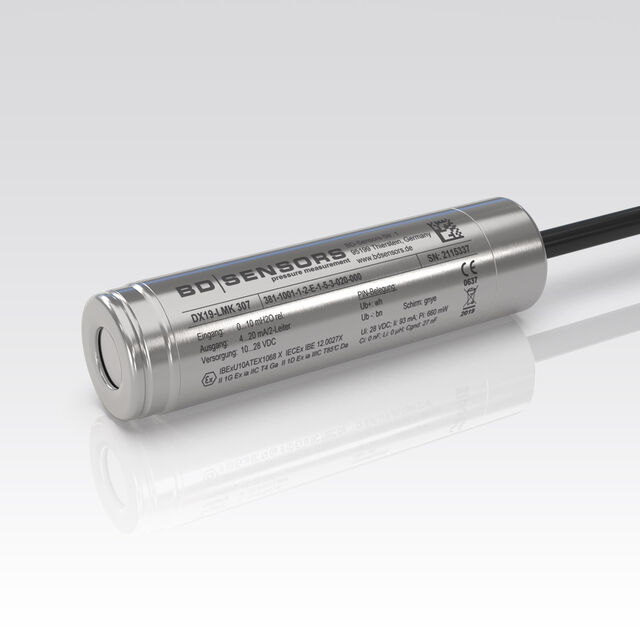

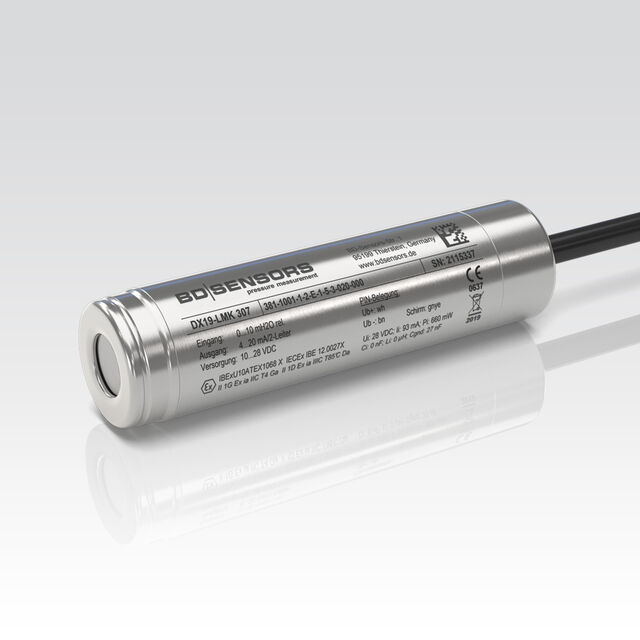

LMK 307

ceramic sensor
stainless steel probe Ø 27

nominal pressure:0 ... 4 mH2O up to 0 ... 250 mH2O
accuracy:0.5 % FSO

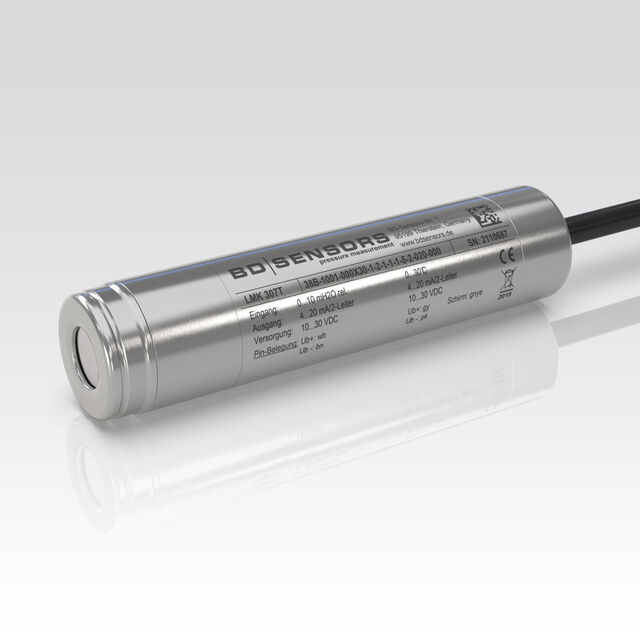

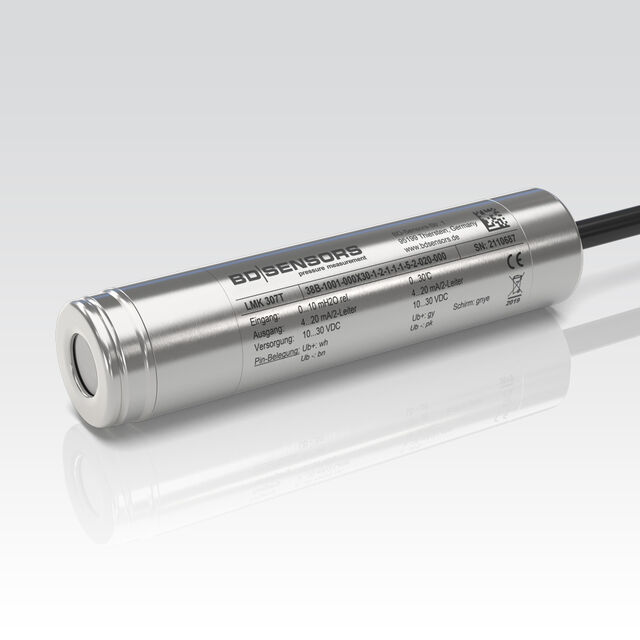

LMK 307 T

ceramic sensor (flush)
level and temperature transmitter Ø 26,5

nominal pressure:0 ... 4 mH2O up to 0 ... 250 mH2O
accuracy:0.5 % FSO

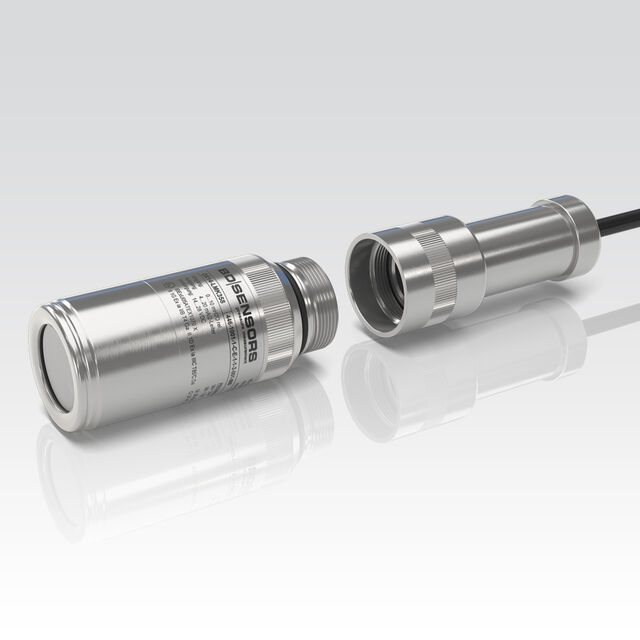

LMK 358

ceramic sensor
detachable stainless steel probe Ø 39,5

nominal pressure:0 ... 40 cmH2O up to 0 ... 100 mH2O
accuracy:0.35 % (Opt. 0.25 %) FSO

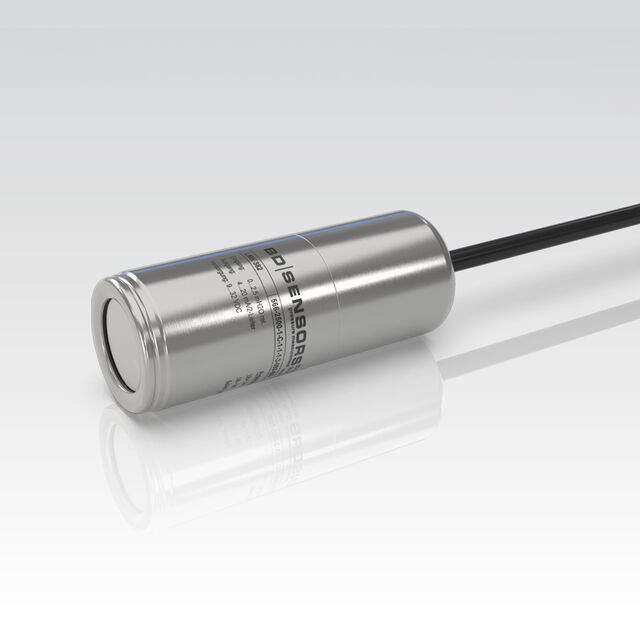

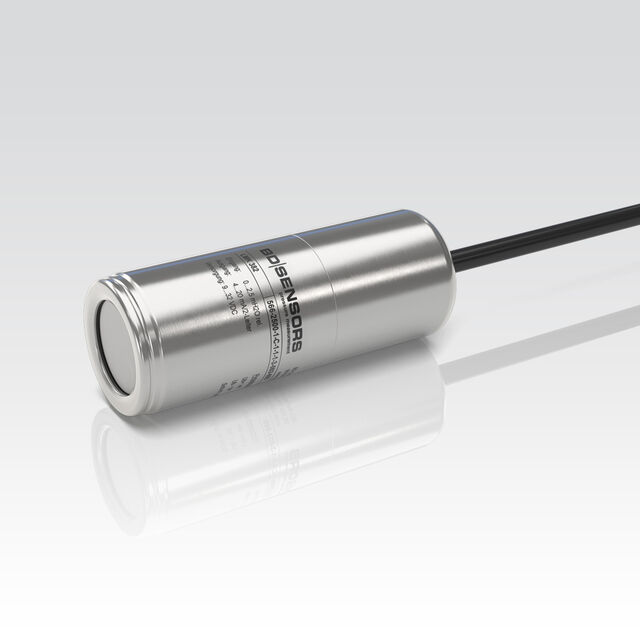

LMK 382

ceramic sensor
stainless steel probe Ø 39,5

nominal pressure:0 ... 40 cmH2O up to 0 ... 200 mH2O
accuracy:0.35 % (Opt. 0.25 %) FSO

LMK 387

ceramic sensor (flush)
Stainless Steel Probe 22 mm

nominal pressure:0 ... 1 mH2O up to 0 ... 100 mH2O
accuracy:0.35 % (Opt. 0.25 %) FSO

LMP 808

stainless steel sensor
detachable plastic probe Ø 35

nominal pressure:0 ... 1 mH2O up to 0 ... 100 mH2O
accuracy:0.35 % (Opt. 0.25 %) FSO

LMK 806

ceramic sensor (flush)
Plastic Probe Ø 21

nominal pressure:0 ... 6 mH2O up to 0 ... 100 mH2O
accuracy:0.5% FSO

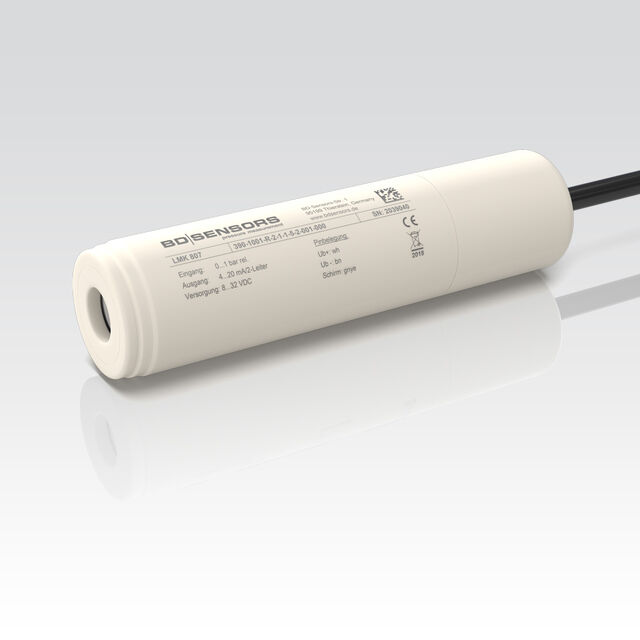

LMK 807

ceramic sensor
plastic submersible probe Ø 35

nominal pressure:0 ... 4 mH2O up to 0 ... 100 mH2O
accuracy:0.5 % FSO

LMK 808

ceramic sensor
detachable plastic level probe Ø 35

nominal pressure:0 ... 1 mH2O up to 0 ... 100 mH2O
accuracy:0.35 % (Opt. 0.25%) FSO

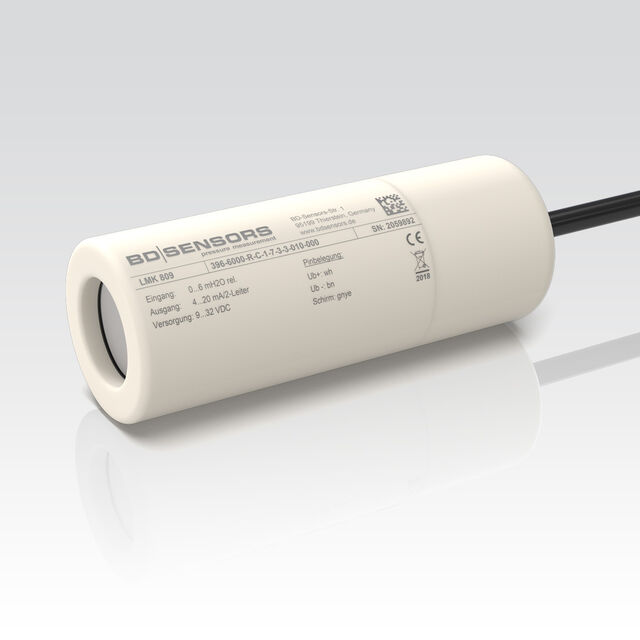

LMK 809

ceramic sensor
plastic probe Ø 45

nominal pressure:0 ... 40 cmH2O up to 0 ... 100 mH2O
accuracy:0.35 % (Opt. 0.25 %) FSO
