LMK 387 H
ceramic sensor
with HART®-communication

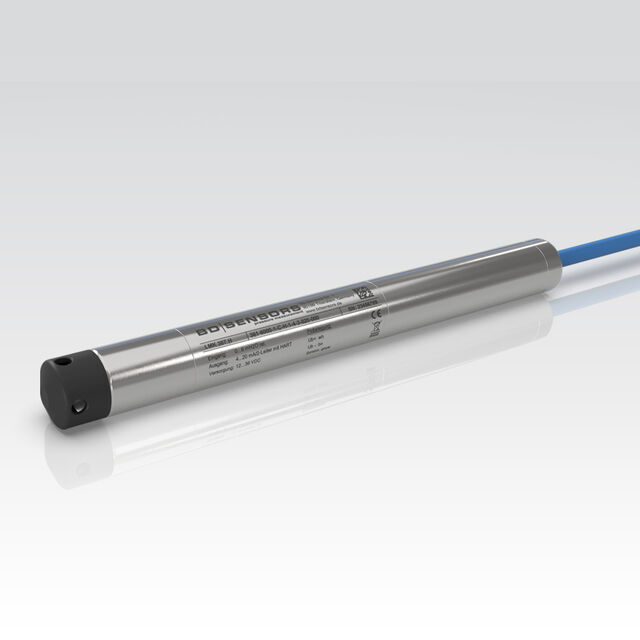

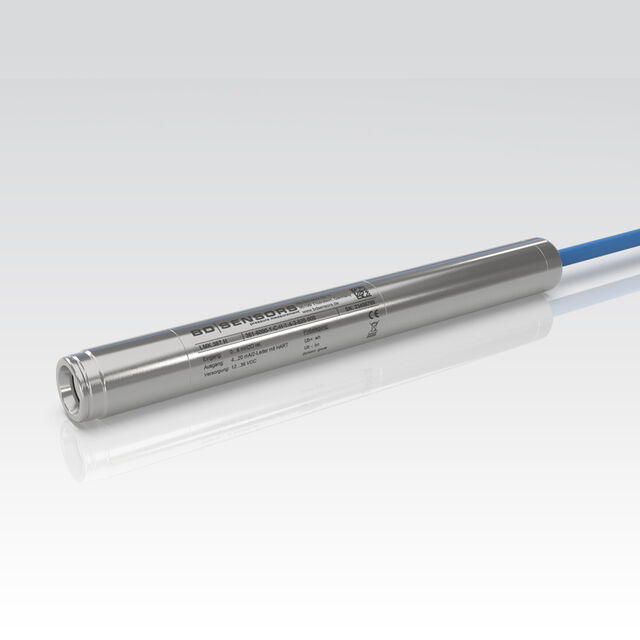

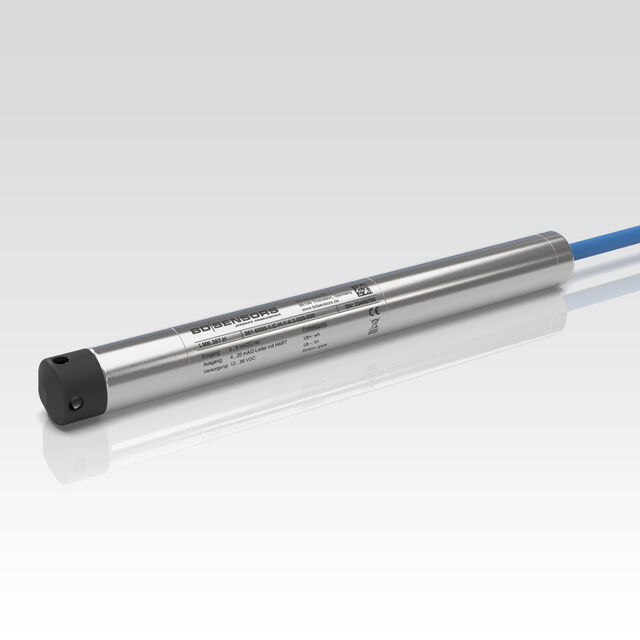

The stainless steel probe LMK 387H was developed for level and gauge measurement in wastewater, sludge or water courses. The mechanical robustness of the flush ceramic diaphragm facilitates an easy disassembly and cleaning of the probe in case of service.
The outer diameter is only 22 mm, whereby the installation or retrofitting can be easily carried out in 1 "pipes or in confined installation conditions. In addition to an intrinsically safe version (zone 0), a version with temperature signal is available.
Features
- nominal pressure: 0 ... 1 mH2O up to 0 ... 100 mH2O
- accuracy: 0.35 % (Opt. 0.25 %) FSO
- diameter 22 mm
- HART®-communication
- excellent long term stability
- highly appropriated for Abwasser
- diaphragm ceramics Al2O3 (99.9 %)
Optional Features
- housing material titanium
- IS-version
Ex ia = intrinsically safe for gas and dust - temperature element Pt 100
- different kinds of elastomer
Areas of application
environmental industry
Media
water
sewage water, sludge
fuels and oils
